Application

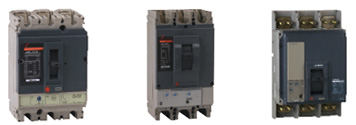

JM8(NS) series Mouded case circuit breaker is one of new type breakers which this company adopts international advanced design, manufacture technology to develop, the rated insulating voltage is 750V, suitable for AC 50Hz(60Hz), rated working voltage 690V or below,rated working current is 12.5 to 1250A of circuit and use in distributing electric energy. Nonfrequent making and breaking in the normal conditions and protecting when circuit and installation are overload, short circuit and under voltage. Rated shell-rack and the breaker which current is under 400A, take protect effect when mousecage motor is non frequent start, breaking off working and protecting overload, short circuit and under voltage.

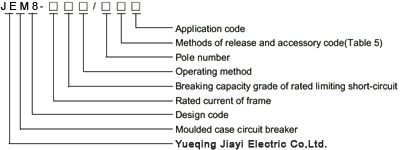

Type and meanings
Note:
No code for distribution breaks;2 represent motor protection circuit breakers.
No code for direct handle operation ; P represents electrical operatipn, and Zrepresentsratary-operated-handles.
Rated breaking capacity grade of MCCB : D-Economical type N-Standard type H-high
Classification of MCCB
.Installation type of MCCB: MCCB are suitable for vertical or harizontal installation.
.According to use of MCCB: distribution circuit protection type, motor protection type;
.According to connection way : front panel connection, back panel connection plug-in connection ;
.According to operation way: for direct handle operation for external rotary handle operating, formotor operating;
.According to overload release type: magnetic release (only instantaneous) the modynamic magnetic type (dual), electronical release;
.According to number of poles: two poles, there poles, four poles.
.The neutral poles (N poles) of four poles MCCB has for types:
.Type A: no overload release on N pole, which is making at the time ; not closing and openingwith the other three poles.
.Type B: no overload release on N pole, which closing and opening with the other three poles.
.Type C: with overload release on N pole, which closing and opening with the other three poles.
.Type D: with overload release on N pole, which making all time; not closing and opening withthe other three poles breaking capacity type L-highest breaking capacity type

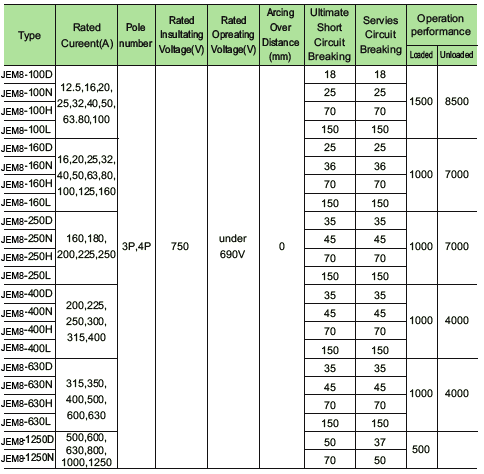

Main technical Specifications
Rated breaking capacity grade of MCCB: D-economical type,with overload release on Npole, which making all time, not closing and opening with the other three poles;N-standard type; H-high breaking capacity type; L-highest breaking capacity type.
Trip charactristic of MCCB

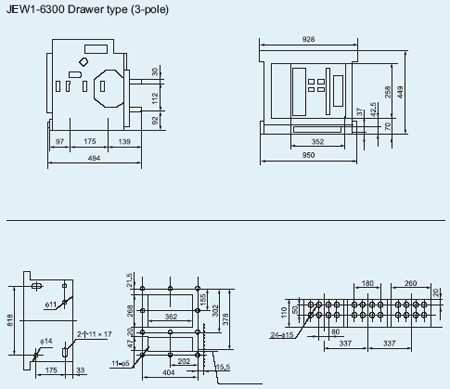

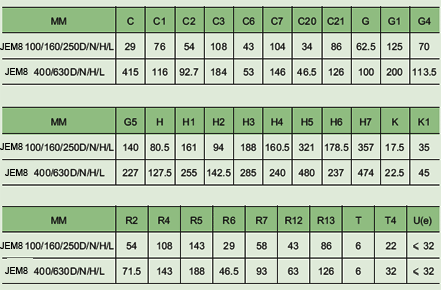

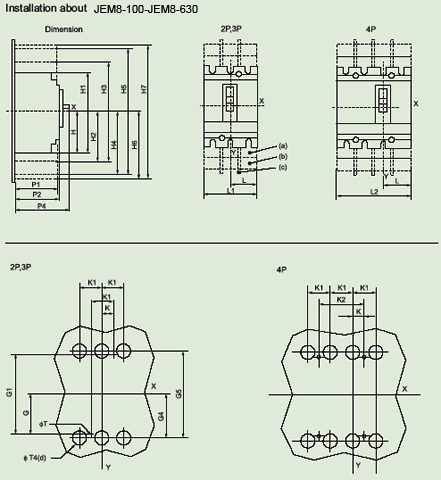

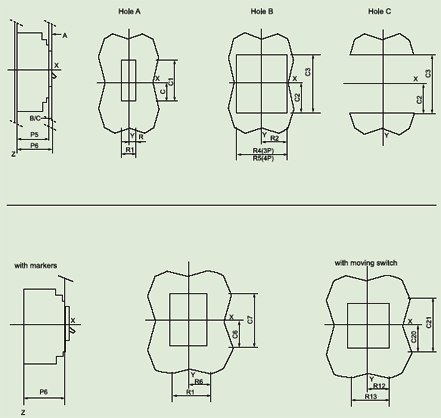

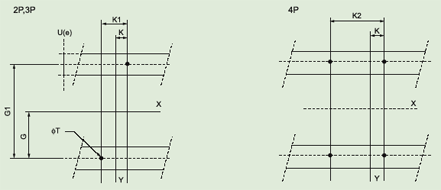

Outline and installation dimensions
Used in fixed or plug-in MCCB
|
